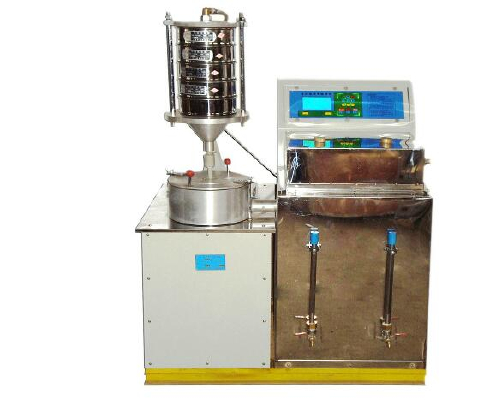

HLY-E full automatic asphalt content rapid extraction equipment introduction: Shanghai Lei Yun test equipment manufacturing Co., Ltd. developed a new generation of testing equipment.

HLY-E automatic asphalt content rapid extracting device overview: on asphalt mixture aggregate ratio for fast and accurate measurement and analysis, the device sets the Asphalt Extraction and solvent recovery as a whole, the whole working process of the automatic control.

HLY-E automatic asphalt content rapid extracting device features: has the advantages of complete functions, advanced technology, high automation and easy operation, is a new generation of test equipment was compared with the traditional instruments Shanghai Lei Yun Test Instrument Manufacturing Co., the company's own R & D, increased 20 ~ 30 times than the average working efficiency of the equipment, monitoring the supervision and control of the necessary equipment of asphalt pavement construction quality.

Main features:

It can be used to evaluate the quality of commercial asphalt in pavement construction, and it is also suitable for asphalt and asphalt mixture used in the survey of old road. Is a necessary equipment for highway transportation industry construction units, laboratories, research institutions and educational institutions, can realize automatic screening, automatic recovery of trichloroethylene, automatic recovery powder.

Main technical parameters:

1, sample capacity 1000g ~ 3000g

2, the extraction accuracy of about 0.1%

3, extraction time 20 ~ 40 minutes / time

4, centrifugal shaft speed 6000rpm

5, the power of the whole machine 4KW

6, three-phase 4 wire 50Hz 380V

7, net weight is 300kg

8, the main engine size (length * width * height) 1100 * 720 * 1680mm

9, the ambient temperature is less than or equal to 35 DEG C.

10, relative humidity: less than 85%.

The composition of the instrument of the automatic asphalt content rapid extraction instrument:

Electromagnetic screening device: ensure double vibration (down / rotation) function of the quality of the solvent used for cleaning, spray cover, depolymerization of specimen.

Uninterrupted circulation filter extraction: the rotation speed of 11000 rpm, equipped with a diameter of 120mm stainless steel centrifugal cup, the capacity of about 400g.

Solvent recovery unit: the recycling capacity of about 50 l/h, equipped with cooling system, automatic control equipment.

Independent control panel: the instrument has the function of automatic control and manual control.

Five, the instrument configuration

1, stainless steel centrifugal cup 1 sets

2, 1 sets of stainless steel screen

3, screen frame 1 sets

4, 1 sets of cables

5, 1 boxes of filter paper

1, 6 copies of the product specification

Working principle of automatic asphalt content fast extraction apparatus:

The sample (asphalt) is placed in the upper box into the screen, solvent, is a new generation of test instrument of Shanghai Lei Yun Test Instrument Manufacturing Co. Ltd. self-developed solvent pump start power, to screen into the screen in the washing solvent, after all levels of vibration and solvent under the asphalt mixture in the screen mesh in the sample material, asphalt and gradually mineral separation, into the centrifugal cup, under the action of centrifugal force, powder in solution is attached to a centrifuge centrifugal filter paper cup, solution (asphalt and trichloroethylene mixed liquid) inflow evaporation tank through the guide plate, heating and evaporation in the evaporation tank (TCE), met after the condenser back into the solvent box. Finally recovered through the discharge valve of asphalt and trichloroethylene, the whole process is done automatically.
