SYD-0713 mixture uniaxial compression tester is suitable for the determination of compressive strength of hot mixed asphalt mixture. According to the design code for highway asphalt pavement (JTJ014), the design parameters of asphalt mixture structure layer are determined by the method. If there is no special provisions for standard test calculation of temperature compressive modulus deflection of 20 degrees for the standard temperature calculation of flexural stress anti pressure compressive modulus is 15 degrees, the loading speed was 2mm/min

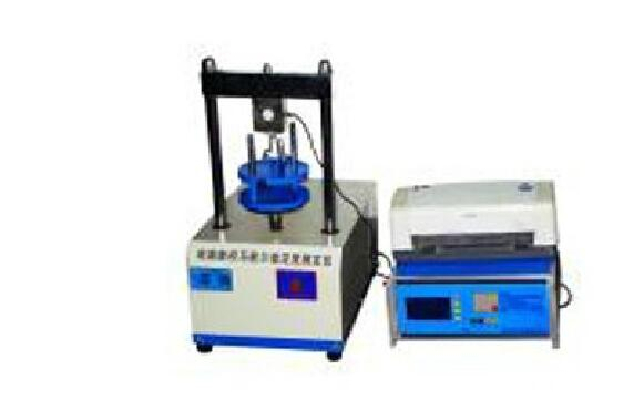

SYD-0713 asphalt mixture uniaxial compression testing machine

Main features:

1, with overload protection, down over bit protection.

2, the operation is simple, the test data is accurate, the performance is stable and reliable.

3, the instrument automatic test, display and print the test pressure and the corresponding flow value, draw the test piece of the force deformation of the coordinate curve.

4, can store 15 groups of test results.

5, large LCD screen display.

6, the flow value detection has single and double way two.

7, test of automatic control by the instrument or computer, compressive deformation data and curve and displayed by the computer automatic archiving, can be printed by the printer, high-grade color inkjet printer.

8, the machine is equipped with USB interface.

9, optional serial port, PC software can be analyzed and processed.

Main technical index:

1, the rate of rise: (50 5) mm/min

2, head diameter: (102 0.2) mm

3, the maximum pressure: 50KN accuracy of 1%

4, flow value range: 0 - 15.00mm precision 0.1mm

5, the ambient temperature is less than or equal to 30 DEG C.

6, relative humidity: less than 85%.

7, the whole power consumption: not more than 700W.

8, size: 70x50x90mm

9. Net weight of the instrument: 100kg

10, the power supply voltage: 220V
