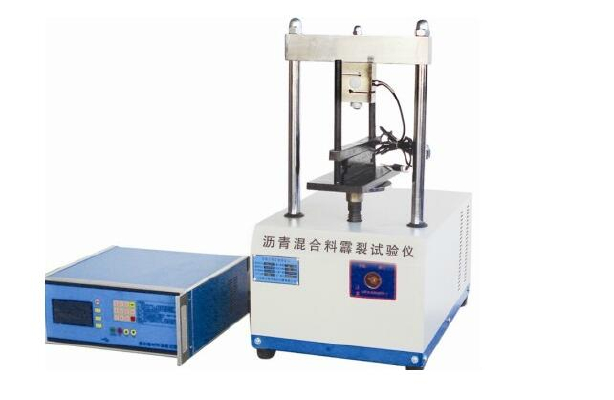

SYD-0716 asphalt mixture splitting test instrument applicable standards: fully meet the JTJ052-2000 (T0716-1993) "highway engineering asphalt and asphalt mixture test procedures" asphalt mixture splitting test requirements.

Purpose: Determination of asphalt mixture under specified temperature and loading rate when splitting failure or in the mechanical properties of the elastic stage, but also for the design of asphalt pavement structure of asphalt mixture design and evaluation of mechanical parameters of asphalt mixture low temperature performance when using.

Main features:

1, with overload protection, down over bit protection.

2, the operation is simple, the test data is accurate, the performance is stable and reliable.

3, the instrument automatic test, display and print, draw the force deformation curve of the test specimen.

4, can store 15 groups of test results.

5, large LCD screen display curve and stability and flow value.

6, the flow value detection has single and double way two.

7, test of automatic control by the instrument or computer, compressive deformation data and curve and displayed by the computer automatic archiving, can be printed by the printer.

8, advanced automatic analysis software, in accordance with the "asphalt mixture ratio design method" to draw a variety of curves, automatically give the best asphalt content, can be output through the printer.

9, with the host computer can be softened by a strong experimental software for analysis and processing.

Main technical index:

1, the rate of rise: (50 5) mm/min

2, bead diameter: (101.6 0.2) mm

(152.4 0.2) mm

3, the maximum pressure: 50KN accuracy of 1%

4, displacement measurement range: 0-15mm resolution: 0.01mm precision 0.1mm

5, size: 700 x 500 x 900mm.

6, the ambient temperature is less than or equal to 30 DEG C.

7, relative humidity: less than 85%.

8, the whole power consumption: 750W.

9. Net weight of the instrument: 100kg

10, the power supply voltage: 220V
